high power wirewound resistor

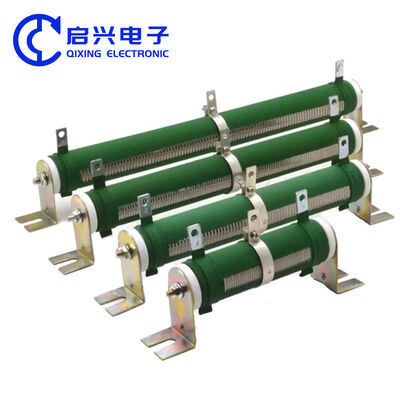

Product Description 1R 5R 8R 10R 50R 70R 100R Ceramic Tube wirewound Variable Resistor 2000 watt Specification NameAdjustable Wirewound ResistorsModelRX20TColorgreenAccessories : thickened Stainless bracket and GasketPower2000 WattResistance1 ohm ~10k ohmsResistance tolerance+/-5%Length430mmDiameter70mmServiceCan be customized according to customer's sizeMaterialEco-friendly paint ceramic tube Packing & Delivery You may interesting Company Profile Factroy Informations:Sichuan

사용자 지정 3000W 알루미늄 호우드 와이어 와이드 로드 저항기. 1Ω-30KΩ 저항, ± 5% 용도, 150PPM 온도 계수. ISO9001, TUV, RoHS 인증을 받았습니다. 브레이킹, 로드 테스트,및 산업 제어 응용 프로그램.

Product features: Adjustable Wirewound RX20 Braking Resistors with High Power and Overload Resistance Specifications: Power range 10W-10000W. Voltage range- 0.5KV-10KV. Resistance Range 1R-1KR. Pressure- AC2500V / 1min50Hz. IP rating IP00. Rated temperature- 375 ℃, short-term / repeat 40% ED. Thermal equilibrium time constant τ = 200s. Advantages High voltage. Packing-- carton packaging. Disadvantages poor shock resistance Applications: simulated loads, discharge equipment,

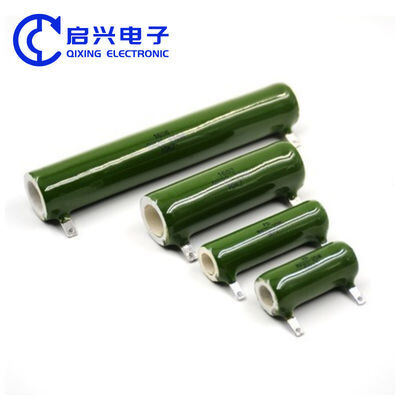

Product Description Namebraking resistorModelRX20Performancehigh powerShapeCylindrical ceramic tubeMaterialWirewoundRated power2500 WResistance1 ohms~10KResistance tolerance±5%DiameterD=70mmLengthL1=4300mmMounting bracketsIncludingNon-standard sizeCan be customized Adjustable type Packing & Delivery Company Profile Sichuan Qixing Electronics CO.,LTD specialize in potentiometers, resistors and EMI filters for 13 years. Our products have CE ,ISO certification and ROHS licenses

Product Description Green ripple wirewound painted Braking Resistor 3000W Product namePainted Tubular Ceramic Inductive ResistorRated Power : 3000WType : FixedSize: 430mm length & 80mm diameter (Can be customized according to customer requirements)ColorGreenResistance value:1R 2R 3R 4R 6R.......10KRResistance tolerance: ±1%(F), ±2%(G), ±5%(J), ±10%(K)Temperature Coefficient≤±250ppm/℃Ambient temperature -55℃～+155℃ApplicationLoad test, equipment discharge, automatic control,

Product Description 50W Ceramic Tube Wirewound Variable Resistor 12 ohm Specification Namebraking resistorModelRXG20Performancehigh powerShapeCylindrical ceramic tubeMaterialWirewoundRated power50WResistance12 ohmsResistance tolerance±5%DiameterD=28mmLengthL1=90mmMounting bracketsIncludingNon-standard sizeCan be customizedAdjustable typeCan be offered You may also like Company Profile

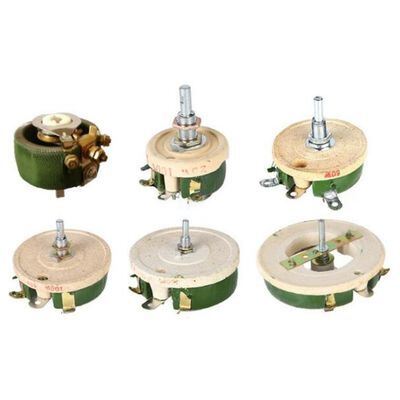

BC1 disc adjustable resistance electric welding machine generator current adjustable resistance 100W product name: BC1 -type rotor -type variable resistor/BC1 disc adjustable resistor/BC1 disk variable resistor/BC1 variable resistor/BC1 porcelain disk resistor/BC1 porcelain disk resistor Circular disk resistor BC1 25W 50W 100W 200W 300W 1K adjustable potentiometer wire wound ceramic disk resistor product description: 1. High power wirewound sliding rheostat are wound with

Wirewound adjustable resistor rheostat 25W 500W 100W 1.BC1 High power wirewound sliding rheostat are wound with chromium-alloy wire as a resistor element. 2.The entire component is coated non-flammable and high-temperature resin exception for the slide contact surface. 3.After cooling and drying, insulation is applied through a high-temperature process. Installed centered roating adjuster component slides along the resistance element to vary the to the desired value. 4.High

RX24 50w 6RJ Gold Aluminum Housed Wirewound resistor 6ohm High Power Load Resistor describe: RX24 gold resistors have the characteristics of high power, small size, strong overload capability, solid structure, and high reliability; they are widely used in power supplies, frequency parameter: Rated power range: 5W~50W Operating voltage range: 100MΩ △R/R≤±0.5% IEC60115-1 4.6 Insulation withstand voltage UN,60S,I≤1mA △R/R≤±1% IEC60115-1 4.7 Durability Min(UP,UR),1.5H-ON,0.5H-OFF
