linear potentiometer
3266P 금속 유리 가시 정밀 다회전 역량 측정기 10K 조정 가능한 저항
product name: 3266P Metal Glass Glaze Precision Multiturn Potentiometer 10K Adjustable Resistor product description: Common specifications and models of 3266 series trimmer potentiometers are 3266W, 3266X, 3266P, 3266Y, 3266Z and other models. Their underlying parameters are consistent. But their specifications are somewhat different. 3266 potentiometer is an indispensable electronic component in electronic products, not only widely used, but also cost-effective, relatively
3266W 금속 유리 가시 정밀 다 회전 트림머 포텐시오미터 1k 2k 5k 10k
product name 3266 Series Precision Multiturn Metal Glass Glaze Adjustable Potentiometer product description Common specifications and models of 3266 series trimmer potentiometers are 3266W, 3266X, 3266P, 3266Y, 3266Z and other models. Their underlying parameters are consistent. But their specifications are somewhat different. 3266 potentiometer is an indispensable electronic component in electronic products, not only widely used, but also cost-effective, relatively low cost.

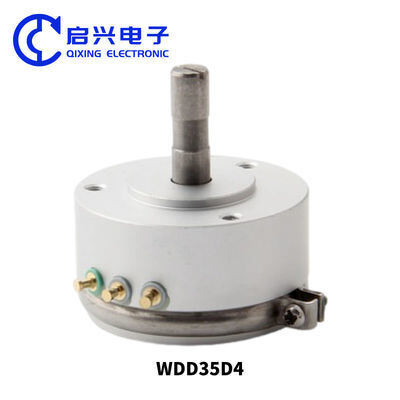

전도성 플라스틱 잠재계각 센서 WDD35D-4 1K 2K 5K10K 0.1%
product name WDD35D-4 potentiometer is a precision conductive plastic angular displacement sensor Mechanical Specifications Mechanical Angle: 360° continuous rotation. Starting Torque: ≤1×10^-4 N·M. Bearings: Utilizes two sets of ball bearings for smooth rotation. Shaft: Made of stainless steel for corrosion and wear resistance. Housing: Aluminum alloy with oxidized surface treatment (silver color) for aesthetics and durability. Performance Specifications Resistance Values:
본스 wxd3590 10 회전 5k 10k 20k 50k 100k 스프링 리턴 포텐시오미터
Bonens Wxd 3590 10 Turns 5k 10k 20k 50k100K Spring Return Potentiometer Product Description Specification Electrical Characteristics Range of nominal resistance 100~100KΩ Resistance tolerance ±2%, ±5% Terminal resistance ≤2%R or 5Ω Linear accuracy ±1%, ±0.5% Electrical angle 3600°±10° Insulation resistance ≥ 200MΩ Withstand voltage 500V (DC or AC peak value) Environment Characteristics Rated power 2W (70°C) Temperature range -55°C~+125°C TCR ±100×10-6/°C Temperature shock ΔR≤
1000W B100K B500K B470K WH116AK 시리즈 빛 디머용 선형 회전 포텐티오미터
product name WH116AK R16P2S Vertical Terminal Pcb Mount Dimmer Light Rotary Potentiometer WIth 10A High Current Push Press Switch lectrical Properties Operating Temperature Range: Wide range, e.g., (-20℃) to (100℃), ensuring operation under various environmental conditions. Switch Rating: AC 250V 10A, capable of handling high load currents and voltages. Switch Contact Resistance: Less than 50mΩ, ensuring good switch contact and reduced energy loss. Rated Power: 0.2W, suitable
3540S-2-104L 10 회전 역량 측정기 3540S 0.5W 5% 1K 5K 10K 47K 100K 정밀 멀티 회전 와이어 와운드 역량 측정기
10K ohms Multi-turn potentiometer wirewound potentiometer 3540 Product Description Specification Electrical Characteristics Range of nominal resistance 100~100K Resistance tolerance ±5% Terminal resistance ≤2%R or 5 Peak noise ≤100 Linear accuracy ±0.25% Electrical angle 3600°±5° Insulation resistance ≥ 200M Withstand voltage 500V (DC or AC peak value) Environment Characteristics Rated power 2W (70°C) Temperature range 55°C~ 125°C TCR ±100x10-6/°C Temperature shock R≤±3%R
BONENS WXD4-23 3W 멀티 턴 와이어 와운드 포텐시오미터 1K 1K5 2K2 3K3 4K7 5K6 6K8 10K 22K 오름
product name WXD4-23 Precision Potentiometer Power: 3W Type: Multi-turn Wirewound Potentiometer Number of Turns: 10 Turns Shaft Diameter: 6mm Shaft Length: 25mm Outer Diameter: 40mm Rotation Angle: 3600° (Note: Typically means 360°, possibly a redundancy in statement but kept for accuracy) Packaging: 5 pcs/box Resistance Tolerance: ±2%~±5% Product size Specification parameters: Place of Origin China China sichuan Model Number WXD4-23 Type Rotary Potentiometer D/C brand-new
본스 3540S-1-502L 포텐시오미터 와이어 와운드 5 KOhms 10 회전 Pwr 2W 3540 시리즈 좋은 가격
10K ohms Multi-turn potentiometer wirewound potentiometer 3540 Product Description Specification Electrical Characteristics Range of nominal resistance 100~100K Resistance tolerance ±5% Terminal resistance ≤2%R or 5 Peak noise ≤100 Linear accuracy ±0.25% Electrical angle 3600°±5° Insulation resistance ≥ 200M Withstand voltage 500V (DC or AC peak value) Environment Characteristics Rated power 2W (70°C) Temperature range 55°C~ 125°C TCR ±100x10-6/°C Temperature shock R≤±3%R
3540 멀티 턴 와이어 와운드 정밀 포텐티오미터 3540S-1-103L 10K 오hm 2w 10 회전
3540 Multi-turn Wirewound Precision Potentiometer 3540S-1-103L 10K ohm 2w 10 turn product name: 3540 50k ohms Multi-turn Wirewound Precision Potentiometer WXD3540 2w 10 turn product description: Part Number Resistance (Ω) Resolution 3540S-1-201L 200 .042 3540S-1-501L 500 .031 3540S-1-102L 1,000 .027 3540S-1-202L 2,000 .021 3540S-1-502L 5,000 .021 3540S-1-103L 10,000 .019 3540S-1-203L 20,000 .014 3540S-1-503L 50,000 .011 3540S-1-104L 100,000 .008 Product Features: 1.Bushing
