variable resistor
3386P 103 10K 단회전 트림머 펀티오미터 냄비 3386P-1-103LF
product name: 3386 series single turn metal glass glaze preset Potentiometer product description: The 3386 Potentiometer is one of the glass glazed precision single loop adjustable Potentiometer. The color of the product is generally blue, and occasionally it is specially customized. 3386 Potentiometer are divided into Potentiometer with handles and Potentiometer without handles. The handles are 8mm, 3mm and 5mm long. The 3386 Potentiometer is widely used in communication
380V AC 3단계 4선 EMI 전원 공급 소음 필터 40A-80A 변주 주파수 필터
380V AC Power Supply Noise Filter DAC42-D Variable Frequency Filter Product Description 380V three-phase four wire system filter DAC42-D DC variable frequency filter Product Name Three-phase four-wire AC 380VAC/440VAC power supply noise filter DAC42-D Series EMI power filter 40A 50A 60A 80A Product Introduction This series features standard filter circuit design, compact size, competitive pricing, and excellent performance in suppressing high-frequency interference from 1MHz
RM065 블루 화이트 트림머 포텐시오미터 변수 조절 저항 RM065 101/501/102/103/104-503
Product name RM065/RM063 Horizontal and Vertical Blue White Trimmer Potentiometers Adjustable Resistors product description: The adjustable resistor RM065/RM063 has a blue substrate color and a white cap, commonly referred to as a blue white potentiometer. There are two types of specifications for this plug-in carbon film potentiometer, horizontal and vertical. The carbon film potentiometer RM065 is a horizontal plug-in unit that requires ample space for installation, and its
3266W 1k 오hm 금속 유리 유리 정밀 다회 트림 포텐티오미터 3266 변수 저항
product name 3266 Series Precision Multiturn Metal Glass Glaze Adjustable Potentiometer resistance value correspondence table 3266W-101=100R 3266W-102=1K 3266W-103=10K 3266W-104=100K 3266W-105=1M 3266W-201=200R 3266W-202=2K 3266W-203=20K 3266W-204=200K 3266W-205=2M 3266W-500=50R 3266W-501=500R 3266W-502=5K 3266W-503=50K 3266W-504=500K product description BONENS 3266W is a multi turn glass glaze micro adjustment variable potentiometer made of metal ceramic material, with a
BONENS 3299 세르메트 모터 트림머 포텐티오미터 300° 회전과 0.5W 전력 정밀 조정
adjustable potentiometer 3299The adjustable potentiometer 3299 is an electronic component commonly used as a resistor in circuits. Its characteristic is that the resistance value can be changed by rotating the knob on the potentiometer, thus changing the parameters of the circuit. Electrical performanceRange of nominal resistance10Ω～5ＭΩTolerance deviation is allowed±10%2. 3 resistance lawA (straight line)Rated power(70°C)0.5WContact resistance changes≤3%R or 5Ω (whichever is

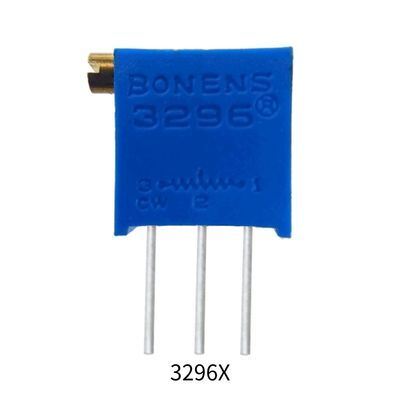

3296w 10k 오hm 0.5 와트 유리 가스 다회 회전 트림머 팟티모미터 변수 저항
product name 3296W multi turn metal glass glaze fine adjustment potentiometer precision adjustable resistor resistance value correspondence table 3296W multi-turn glass glaze pre-adjustable potentiometer resistance value 3296W-101=100R 3296W-102=1K 3296W-103=10K 3296W-104=100K 3296W-105=1M 3296W-201=200R 3296W-202=2K 3296W-203=20K 3296W-204=200K 3296W-205=2M 3296W-500=50R 3296W-501=500R 3296W-502=5K 3296W-503=50K 3296W-504=500K product description The 3296W potentiometer is a
3006p-1-202lf 트림포트 3006p-1-102lf 조절 가능한 저항 10k 50k 3006p시리즈 트림머 전력계 변수 저항
product name 3006P adjustable precision multi-ring metal glass glaze preadjustable potentiometer product description The 3006 series multi turn metal glass glaze fine adjustment potentiometer is composed of a glass glaze resistor and a rotating or sliding system. The knob clockwise adjusts the resistance value, allowing for flexible adjustment of voltage and current. The 3006P potentiometer housing is made of ABS resin material, with insulation, flame retardancy, high
WX112 ((050) 2.2K 5% 5W 변동 저항 단회전 와이어 와운드 포텐티오미터
product name: WX112 WX050 5W single turn wire wound potentiometer adjustable resistance 100R 330R 470R 1K 2K2 3K3 4K7 5K6 6K8 10K 22k 33K 47K product description: WX112 single-coil wire winding potentiometer shaft diameter: 6mm, shaft rod specification: 20-ZS-3, outer diameter: 45mm, resistance accuracy: ±5% ±10%, power: 5W, packing: 20pcs/box Product Features: WX112 WX050 Single -wire Winding Power Titles Features: Linear stability, uniform rotation damping, uniform
3386P 싱글턴 트림 포텐시오미터 0.5w 10% 1K 2K 5K 10K 20K 50K 100K 3386 변수 저항
product name: 3386 series single turn metal glass glaze preset Potentiometer product description: The 3386 Potentiometer is one of the glass glazed precision single loop adjustable Potentiometer. The color of the product is generally blue, and occasionally it is specially customized. 3386 Potentiometer are divided into Potentiometer with handles and Potentiometer without handles. The handles are 8mm, 3mm and 5mm long. The 3386 Potentiometer is widely used in communication
