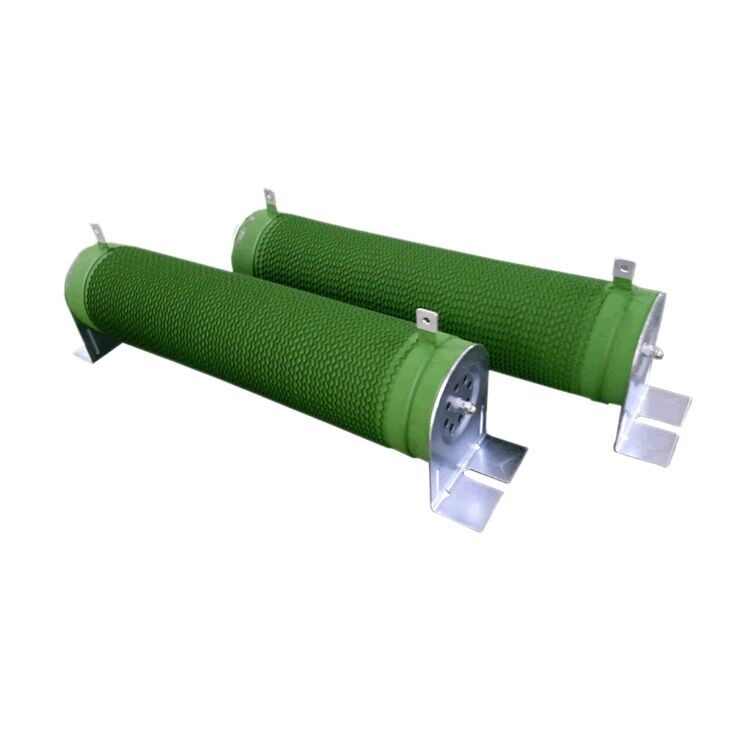

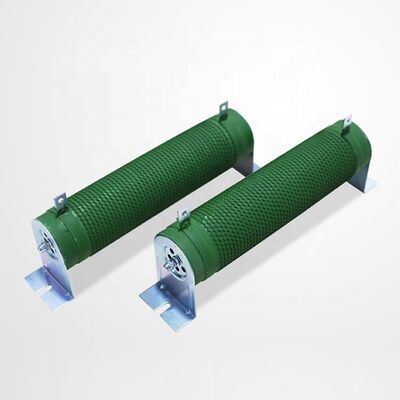

5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor
  • 5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor
  • 5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor
  • 5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor
  • 5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor
  • 5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor
  • 5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor

5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor

원래 장소 중국 쓰촨성
브랜드 이름 bonens
모델 번호 RX20
제품 상세정보
설명:
5kW 5000W 권선형 가변 저항기
저항:
0.50-30KΩ, 1R-100KR
저항 공차:
±5%, +/-5%
유형:
고정 저항기
기술:
세라믹 복합물
패키지 유형:
관통 구멍
관통 구멍:
1ohm-100Kohm
d/c:
2021
정격 출력:
5000W
온도 계수:
PTC
사용 가능한 미디어:
사진
강조하다:

5kW wirewound power resistor

,

5000W variable resistor

,

high-power wirewound resistor

지불과 운송 용어
최소 주문 수량
3
제품 설명
Product Description
Power Resistor 5kw 5000w Wirewound Variable Resistor
1.5000 watt adjustable resistor ceramic tube wirewound resistor variable resistor
Rated Power : 5000W
Size: 500mm length & 100mm diameter
Resistance value：1RJ 2RJ 3RJ 4RJ 6RJ.......10KRJ
Type :  Adjustable
2.Features:
(1) Resistance surface is paint, power range is wide.
(2)Excellent high temperature load performance.
(3)Full welded structure.
(4)High reliability.
3.Range of application:
(1)Mainly used for large power supply.
(2)Electric power equipment.
(3)Electrical equipment.
(4)The locomotive, etc.
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 0
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 2
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 4
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 6
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 8
4.Specifications and dimentions:
Rated power
(W)
Dimensions（MM)
Reference weight （KG)
Resistance accuracy
Temperature Coefficient
D±2
L1±2
L2±5
L3±3
N±1
Φ±1
10W
14
40
/
/
5
3
0.02



















±5%



















±250PPm
15W
14
45
/
/
5
3
0.02
20W
16
50
85
100
6
3
0.05
25W
20
50
85
100
6
3
0.05
30W
20
70
105
120
6
3
0.06
40W
20
90
125
140
6
3
0.08
50W
28
90
130
150
9
4
0.1
75W
28
140
180
200
9
4
0.15
100W
28
170
210
230
9
4
0.18
150W
28
215
250
270
9
4
0.22
200W
28
267
300
320
9
4
0.23
250W
28
267
300
320
9
4
0.32
300W
40
267
287
307
12
6
0.32
400W
40
300
320
240
12
6
0.36
500W
50
300
320
340
14
6
0.55
600W
50
300
320
340
14
6
0.95
800W
60
300
330
335
16
6
1
1000W
70
300
330
335
16
6
1.2
1200W
70
360
390
415
16
6
1.6
1500W
70
420
450
470
16
6
2
2000W
60
510
540
560
16
6
2.3
2500W
70
510
540
560
16
6
2.7
3000W
80
430
470
500
16
6
3
4000W
100
400
440
465
16
7
3.5
5000W
100
500
540
560
16
7
4.5
6000W
100
600
640
660
16
7
5.8
8000W
150
600
690
740
25
15
18
9000W
150
600
690
740
25
15
18
10KW
150
600
690
740
25
15
18
5.Rated temperature drop curve:
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 10
Company Profile
Factroy Informations:
Sichuan Qixing Elctronics Co., Ltd is a specialized enterprise engaging in trimming potentiometers, wire-wound potentiometer series, wire-wound resistor series, and RIG High power resistors. It is a high-tech enterprise appraised by state.

Our products under the "BONENS" brand that have been widely applied in the fields of instruments, meters and apparatuses, post and telecommunications, electricity power, railway signals, aviation and aerospace.

We have attained ISO9001 certificate, and passed the TUV and RoHS, which adheres to the environmental standards of the EU. With excellent product quality, advanced facility, abundant technology, strict management and good service, win customers’ high praise and faith!

Besides our own main products, we are also pleased to offer customers other extra products and service as their requirement, such as any other consumer electronics and quality supervision commissioner in China.
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 12
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 14
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 16
Packing & Delivery
5000W Adjustable Ceramic Composition Wirewound Power Resistor Variable Resistor 18
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
